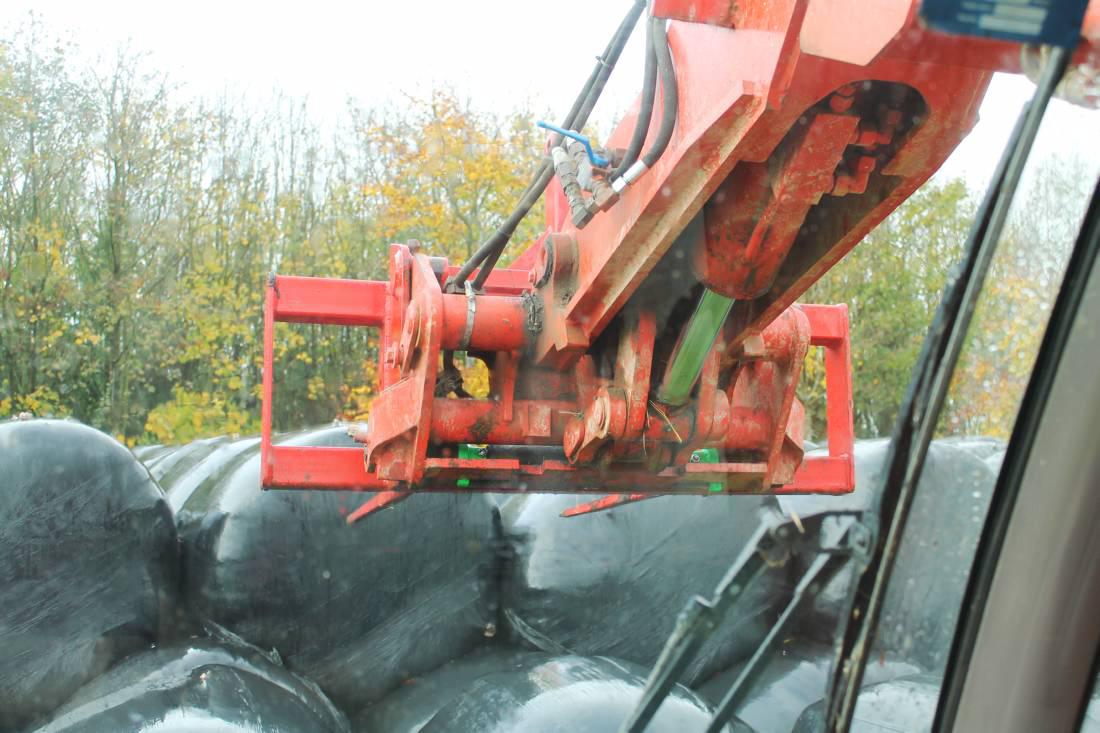

From outside the cab the visibility is far better but the position of the implement locking system does not jump out at you.

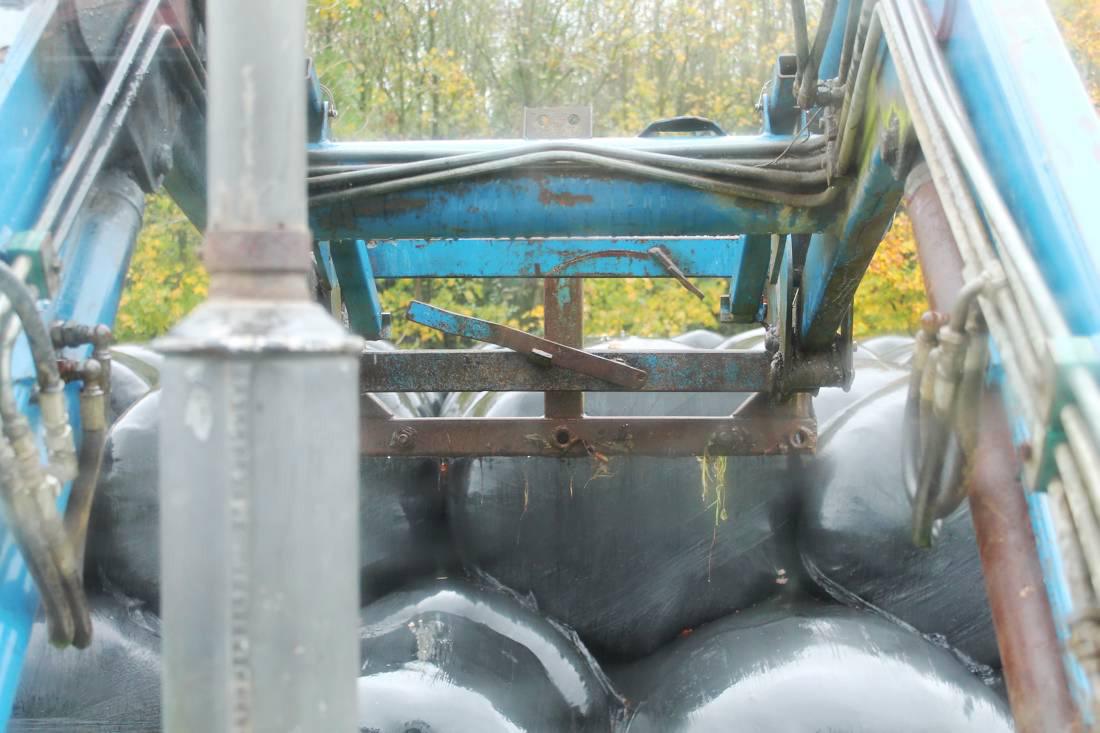

This is the view from the cab of a tractor fitted with a Tanco T100 loader. The locking lever is quite easy to see. Note the missing lever return spring which keeps the implement safely locked on the loader!

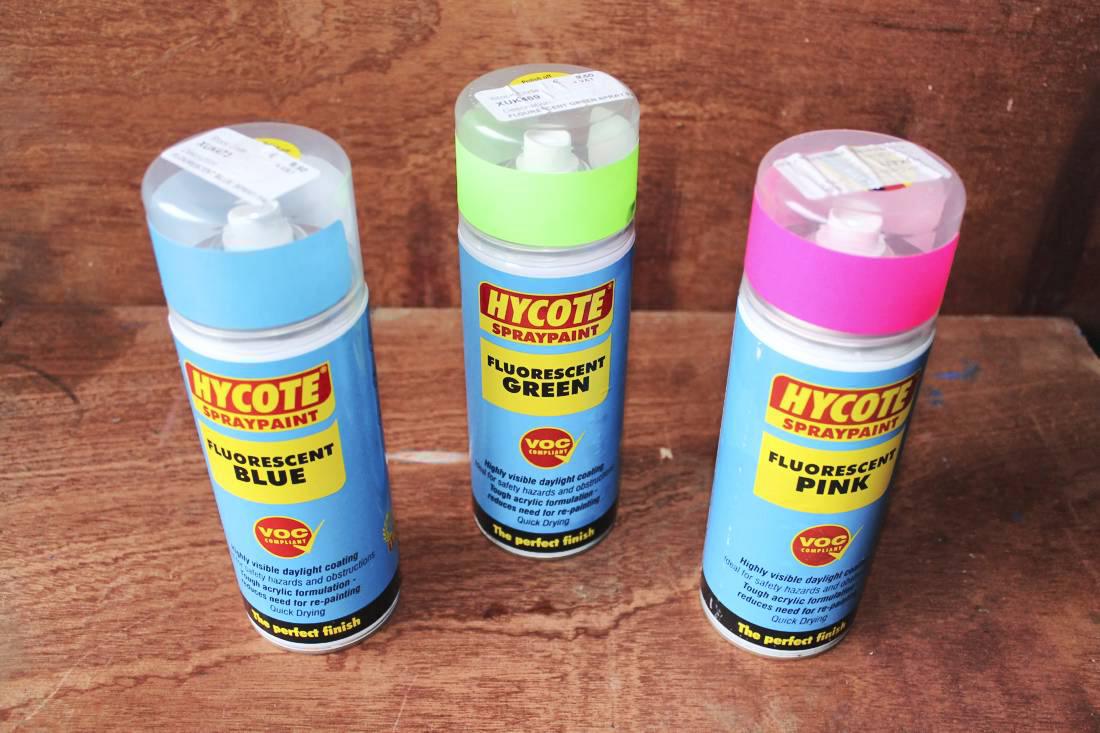

What better than fluorescent paint to make anything stand out and more visible on a wet dreary winters day. We sourced this trio of high visibility fluorescence from my local engineering firm, Paddy Denby Engineering in Ferns. It should be possible to source similar from most auto factor’s or tractor dealerships around the country. These examples cost €9.50 plus Vat each and are available in a multitude of fluorescent colours, primer and lacquer.
Once cleaned, follow the paint manufacturer’s instructions to first prime and then paint don’t forget your mask, paint fumes can be nasty. Adding a coat of lacquer will make the job last longer and look better. If possible, paint in a dry warm environment. Alternatively warm the item to be painted on a radiator and similarly dry once painted. Moisture is not good for paint or the painting process and could cause the painting job to fail.

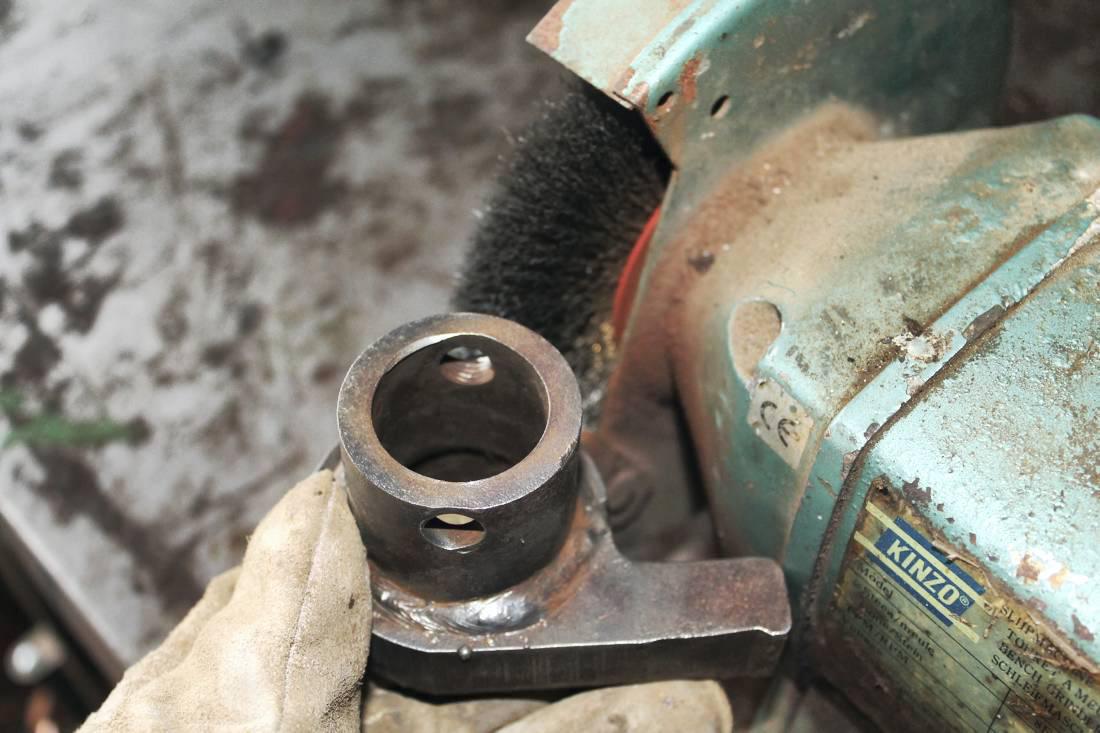

Preparation is key to successful painting. All the old paint, grease and dirt needs to be removed before painting. Smooth surfaces need to be ‘keyed’ to give the paint something to grip. The wire wheel did the job in this case but sandpaper can be used either. Again ensure the surface is clean, especially of oils or grease before painting. Use a suitable primer, preferably the same brand as the paint to provide the undercoat.
Also needing urgent attention on the mechanism is one of the locking pins. This will need to be replaced and a split pin fitted in the operating linkage at the other end.

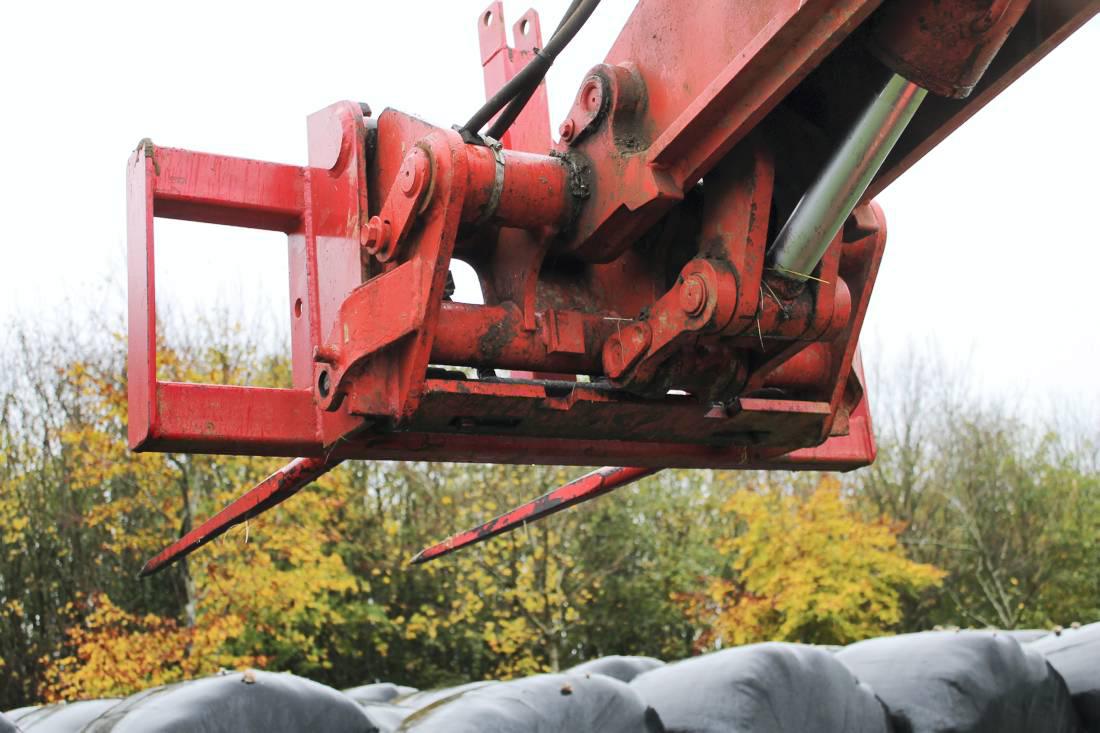

Painting requires decent preparation so it’s best to remove the components to be painted. Removal of the quick attach stops markers on the Manitou is relatively easy with the removal of just one bolt per side. It does reveal that the bolts holes have nearly pulled through on this side. The locking pin can be replaced or alternatively rotated by 90-degrees and drilled out again which is what we did.

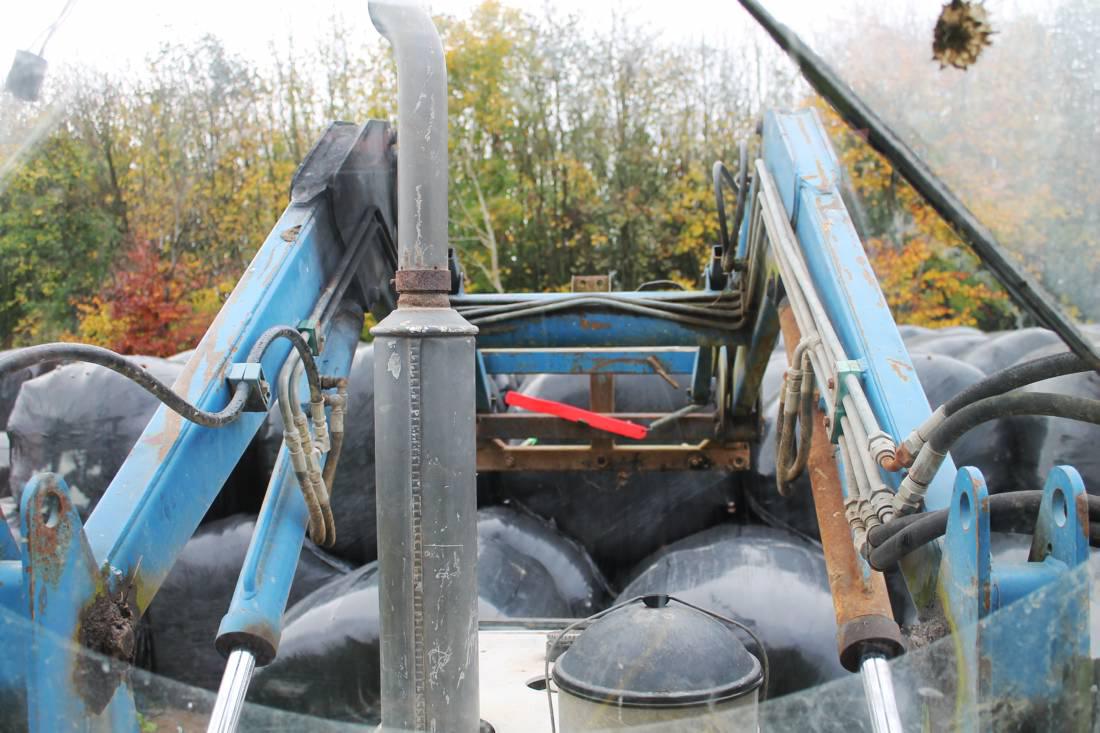

The Tanco T-series loader with its fluorescent pink q/a lever and new spring. Highly visible now from the cab.
There is no doubting the convenience of quick attachment systems for tractors or industrial loaders. Loading feeder wagons with a combination of feedstuffs that require changing loader implements is made quick and easy by such systems. However, it is easy to leave an implement unlocked, with potentially devastating results.
Here we look at how you can reduce the risk of such an incident. A little maintenance on these locking systems will go a long way. There are many different quick-attach latching systems. Most are excellent, especially on modern tractor loaders and handlers.
One of the biggest challenges is being able to see if latching pins are in place.
ADVERTISEMENT
Here we take two popular machines –a Manitou MLT629 and a Tanco T100 loader – and add a little colour to demonstrate what can be done to make farming safer. We also check for proper function and operation of the quick-attach mechanism. Always remember to leave the loader in the lowered position when unattended – this may prevent an injury.
Register for free to read this story and our free stories.
This content is available to digital subscribers and loyalty code users only. Sign in to your account, use the code or subscribe to get unlimited access.
The reader loyalty code gives you full access to the site from when you enter it until the following Wednesday at 9pm. Find your unique code on the back page of Irish Country Living every week.
CODE ACCEPTED
You have full access to the site until next Wednesday at 9pm.
CODE NOT VALID
Please try again or contact support.
There is no doubting the convenience of quick attachment systems for tractors or industrial loaders. Loading feeder wagons with a combination of feedstuffs that require changing loader implements is made quick and easy by such systems. However, it is easy to leave an implement unlocked, with potentially devastating results.
Here we look at how you can reduce the risk of such an incident. A little maintenance on these locking systems will go a long way. There are many different quick-attach latching systems. Most are excellent, especially on modern tractor loaders and handlers.
One of the biggest challenges is being able to see if latching pins are in place.
Here we take two popular machines –a Manitou MLT629 and a Tanco T100 loader – and add a little colour to demonstrate what can be done to make farming safer. We also check for proper function and operation of the quick-attach mechanism. Always remember to leave the loader in the lowered position when unattended – this may prevent an injury.
