The fifth generation of the new Fendt 800 Vario features three models – the 826, 829 and the 832 Vario, and features power outputs of 260 to 320hp in the Power+, Profi and Profi+ versions.
The newly developed series features the Fendt Dynamic Performance (DP) added power concept for all models and releases 23hp when required. The Fendt VarioDrive, the latest generation of the Vario transmission is paired with the eight litre, six-cylinder AGCO Core 80 engine (approved for HVO and other fuels).
VarioDrive
The single-stage VarioDrive drivetrain with independent four-wheel drive was first introduced in 2014 with the 1000 Vario and is now available for the first time in the 800 series. There is no need for manual shifting when switching between field and road. VarioDrive drives the front and rear axles independently of each other. Another advantage is the so-called pull-in turn effect. Thanks to this feature, the independently driven front axle actively pulls the machine into the turn without torsion allowing the 800 Vario to achieve a small turning circle.

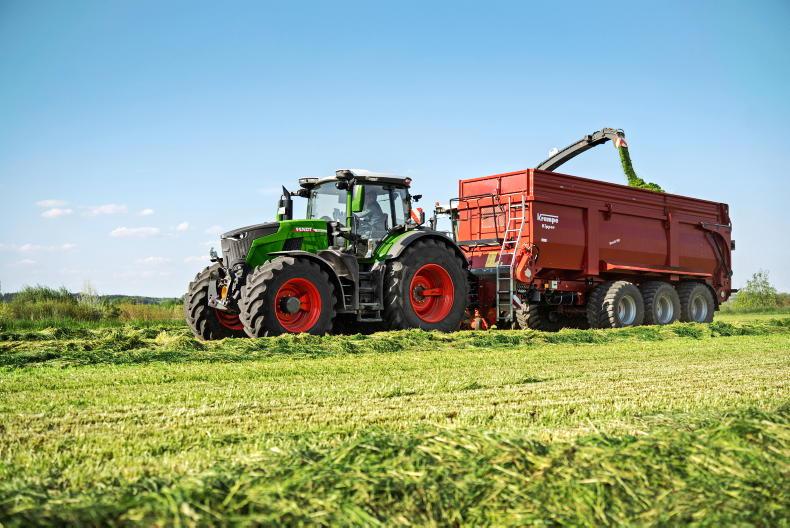

The fifth generation of the new Fendt 800 Vario features three models- the 826, 829 and the 832 Vario.
Fendt iD low speed concept
The Fendt iD low-speed concept allows the 800 Vario to achieve high torque and saves fuel at low engine speeds. The rated engine speed is only 1,700rpm. In the main working range, the speed is a quiet 1,100 to 1,400rpm. A speed of 40km/h is reached at 950rpm, 50km/h at 1,200rpm, and the top speed of 60km/h at 1,450rpm. The maximum torque of 1,680 Nm is available on the top model Fendt 832 Vario from 1,200rpm. The 800 features an operating weight of 9.9t with a permissible overall weight of up to 17.5t with an approval for 40 and 50 km/h results in a payload of 7.6t.
New cab
With the 800 Vario series, Fendt is presenting a new tractor cab with what it claims is an exclusively developed lighting concept. Fendt notes that the view to the front as well as the view of the implement and the processed areas are central to continuously monitor work results. The new LED spotlights are available in two equipment variants: Vision and UltraVision. In both variants, eight or 12 spotlights can be installed in the cab roof. In the UltraVision variant, the tractor illuminates the area with 4,400 lumens per spotlight and the spotlights are dimmable in five stages.
The 800 Vario features up to six hydraulic spool units in the rear and two in the front.
The Vision equipment option offers 1,000 lumens per spotlight. All spotlights, including the rotating beacon, are firmly installed in the cab roof and placed in agricultural use for optimum illumination and glare-free working. Up to four individual profiles can be stored for quick operation of the work lights. For example, the driver can dim the light on either side of the tractor, while brightly illuminating the rest of the environment so as not to glare another driver. The configuration can also be mirrored with one click.
The new, optional Fendt GroundVision drawbar lighting illuminates the area directly at the rear of the machine. On the one hand, the area directly in front of the implement and in front of it is illuminated in field use, and on the other hand, it simplifies the coupling of implements in the dark. The lights are integrated at the lower end of the rear fenders.
Fendt ONE
The 800 series feature the Fendt ONE workstation with armrest and up to three display areas (Profi and Profi+). The series can be fitted with the optional, heated laminated safety glass (LSG) front window.
The 800 Vario has the option of reverse drive control. In addition to the four-speed PTO, there is a separate PTO with 540/900/1,000 rpm speeds. Another new feature is the integration of Apple CarPlay into the Fendt infotainment via cable or Bluetooth.
High hydraulic power
The 800 Vario features up to six hydraulic spools in the rear and two in the front. Customers can choose between three hydraulic pumps: 165 l/min, 220 l/min and a double pump system with a flow capacity of 385 l/min. The 800 Vario features a top speed of up to 60km/h.
System (CAS) ventilation and cooling concept. The fan can be optionally equipped with a reverse function. In addition, a self-cleaning air filter including automatic control is optionally available for the Core 80 engine. This option is offered together with the automatic dust extraction for the cab air filter. In this system, the cab air filter is continuously and automatically passively cleaned by vacuum and a cyclone separator.
Fendt ONE
The 800 series feature the FendtONE workstation with armrest and up to three display areas (Profi and Profi+). Optional footrests are added on the steering tower and the side console for relaxed leg position. The series can be fitted with the optional, heated laminated safety glass (LSG) front window.
The 800 Vario has the option of reverse drive control. In addition to the four-speed PTO, there is a separate PTO with 540/900/1000 rpm speeds.
The tractor comes with the new, electrically adjustable “Super Comfort Seat Titanium Leather” with numerous options for high seating comfort. Another new feature is the integration of Apple CarPlay into the Fendt infotainment via cable or Bluetooth.
High hydraulic power for use with complex implements
The 800 Vario features up to six hydraulic spool units in the rear and two in the front. A maximum of four spools in the Power+ equipment line are available in the rear and one in the front or five spools in the rear. Customers can also choose between three hydraulic pumps: 165 l/min, 220 l/min and a double pump system with a flow capacity of 385 l/min (165 + 220 l/min) is available. The 800 Vario features a top speed of up to 60 km/h.
The 800 series comes with numerous options for track width, tyres and the Fendt VarioGrip tyre pressure regulation system. Customers can order the tractor as standard with a flange or a stub axis. Until now, the use of a guidance system was limited to a top speed of 25 km/h. With the 800 \Vario series, Fendt offers guidance system to be used at up to 40 km/h. The Fendt 800 Vario Gen5 can be ordered from autumn 2025.
The fifth generation of the new Fendt 800 Vario features three models – the 826, 829 and the 832 Vario, and features power outputs of 260 to 320hp in the Power+, Profi and Profi+ versions.
The newly developed series features the Fendt Dynamic Performance (DP) added power concept for all models and releases 23hp when required. The Fendt VarioDrive, the latest generation of the Vario transmission is paired with the eight litre, six-cylinder AGCO Core 80 engine (approved for HVO and other fuels).
VarioDrive
The single-stage VarioDrive drivetrain with independent four-wheel drive was first introduced in 2014 with the 1000 Vario and is now available for the first time in the 800 series. There is no need for manual shifting when switching between field and road. VarioDrive drives the front and rear axles independently of each other. Another advantage is the so-called pull-in turn effect. Thanks to this feature, the independently driven front axle actively pulls the machine into the turn without torsion allowing the 800 Vario to achieve a small turning circle.
The fifth generation of the new Fendt 800 Vario features three models- the 826, 829 and the 832 Vario.
Fendt iD low speed concept
The Fendt iD low-speed concept allows the 800 Vario to achieve high torque and saves fuel at low engine speeds. The rated engine speed is only 1,700rpm. In the main working range, the speed is a quiet 1,100 to 1,400rpm. A speed of 40km/h is reached at 950rpm, 50km/h at 1,200rpm, and the top speed of 60km/h at 1,450rpm. The maximum torque of 1,680 Nm is available on the top model Fendt 832 Vario from 1,200rpm. The 800 features an operating weight of 9.9t with a permissible overall weight of up to 17.5t with an approval for 40 and 50 km/h results in a payload of 7.6t.
New cab
With the 800 Vario series, Fendt is presenting a new tractor cab with what it claims is an exclusively developed lighting concept. Fendt notes that the view to the front as well as the view of the implement and the processed areas are central to continuously monitor work results. The new LED spotlights are available in two equipment variants: Vision and UltraVision. In both variants, eight or 12 spotlights can be installed in the cab roof. In the UltraVision variant, the tractor illuminates the area with 4,400 lumens per spotlight and the spotlights are dimmable in five stages.
The 800 Vario features up to six hydraulic spool units in the rear and two in the front.
The Vision equipment option offers 1,000 lumens per spotlight. All spotlights, including the rotating beacon, are firmly installed in the cab roof and placed in agricultural use for optimum illumination and glare-free working. Up to four individual profiles can be stored for quick operation of the work lights. For example, the driver can dim the light on either side of the tractor, while brightly illuminating the rest of the environment so as not to glare another driver. The configuration can also be mirrored with one click.
The new, optional Fendt GroundVision drawbar lighting illuminates the area directly at the rear of the machine. On the one hand, the area directly in front of the implement and in front of it is illuminated in field use, and on the other hand, it simplifies the coupling of implements in the dark. The lights are integrated at the lower end of the rear fenders.
Fendt ONE
The 800 series feature the Fendt ONE workstation with armrest and up to three display areas (Profi and Profi+). The series can be fitted with the optional, heated laminated safety glass (LSG) front window.
The 800 Vario has the option of reverse drive control. In addition to the four-speed PTO, there is a separate PTO with 540/900/1,000 rpm speeds. Another new feature is the integration of Apple CarPlay into the Fendt infotainment via cable or Bluetooth.
High hydraulic power
The 800 Vario features up to six hydraulic spools in the rear and two in the front. Customers can choose between three hydraulic pumps: 165 l/min, 220 l/min and a double pump system with a flow capacity of 385 l/min. The 800 Vario features a top speed of up to 60km/h.
System (CAS) ventilation and cooling concept. The fan can be optionally equipped with a reverse function. In addition, a self-cleaning air filter including automatic control is optionally available for the Core 80 engine. This option is offered together with the automatic dust extraction for the cab air filter. In this system, the cab air filter is continuously and automatically passively cleaned by vacuum and a cyclone separator.
Fendt ONE
The 800 series feature the FendtONE workstation with armrest and up to three display areas (Profi and Profi+). Optional footrests are added on the steering tower and the side console for relaxed leg position. The series can be fitted with the optional, heated laminated safety glass (LSG) front window.
The 800 Vario has the option of reverse drive control. In addition to the four-speed PTO, there is a separate PTO with 540/900/1000 rpm speeds.
The tractor comes with the new, electrically adjustable “Super Comfort Seat Titanium Leather” with numerous options for high seating comfort. Another new feature is the integration of Apple CarPlay into the Fendt infotainment via cable or Bluetooth.
High hydraulic power for use with complex implements
The 800 Vario features up to six hydraulic spool units in the rear and two in the front. A maximum of four spools in the Power+ equipment line are available in the rear and one in the front or five spools in the rear. Customers can also choose between three hydraulic pumps: 165 l/min, 220 l/min and a double pump system with a flow capacity of 385 l/min (165 + 220 l/min) is available. The 800 Vario features a top speed of up to 60 km/h.
The 800 series comes with numerous options for track width, tyres and the Fendt VarioGrip tyre pressure regulation system. Customers can order the tractor as standard with a flange or a stub axis. Until now, the use of a guidance system was limited to a top speed of 25 km/h. With the 800 \Vario series, Fendt offers guidance system to be used at up to 40 km/h. The Fendt 800 Vario Gen5 can be ordered from autumn 2025.
