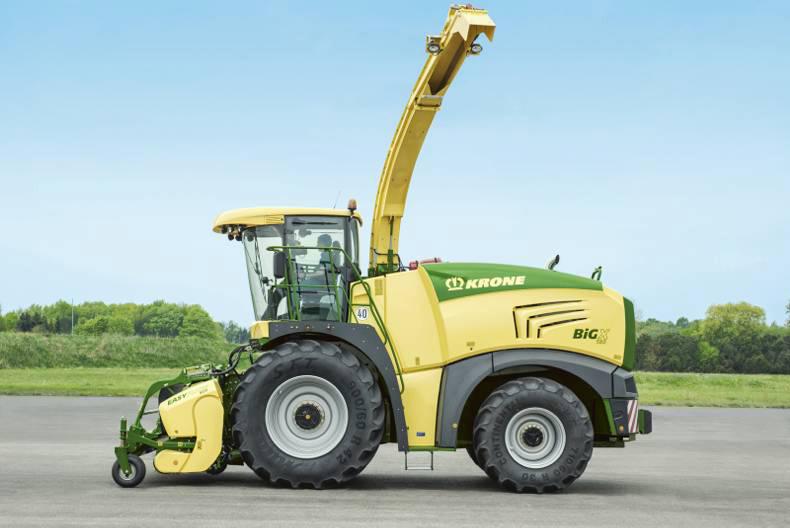

The Bix X compact forager range consists of four models – the 480, 530, 580 and 630 – and offers customers the same features as its bigger brother but in a more compact and versatile platform. As well as the compact Big X range, Farmhand will have the larger Big X range on display at Grass & Muck, with a 770 model on their stand.

Manoeuvrability

When fitted with the optional oversize 800/70 R38 and 540/65 R30 tyres, the overall transport width is only 3m, which is an important factor when travelling on the Irish country roads. Another feature on the Big X is the rear-axle suspension, which provides plenty of room for steering via a wishbone and hydraulic strut suspension system, ensuring comfort, stability and manoeuvrability even on the roughest terrain while also helping to lower the forager’s centre of gravity.

ADVERTISEMENT

Engines

On the road, the Big X range has a top speed of 40km/h at a fuel-friendly 1,600rpm. To further help save fuel, economy drive can be selected, which allows only the front wheel motors to be driven, thus ensuring low fuel consumption on the road between jobs. Upon entering the field, the four-wheel drive is automatically engaged when switched into field mode. Standard two-wheel drive versions are also available for customers who don’t require 4wd.

All of the Big X models are powered by MTU engines. Power is delivered to the 480 and 530 via a 12.8-litre six-cylinder turbocharged engine producing a maximum 490hp and 530hp respectively, while the bigger 580 and 630 models have a 15.6-litre version producing 585hp and 626hp respectively.

Crop flow

The Krone Big X has a crop flow design that consists of an intake system with six intake rollers which is followed by a cutter head available with 20, 28, 36 or 40 knives and is also equipped with VariStream. The crop travels through the optional VariQuick crop processor which can be engaged or disengaged easily within minutes, up to the StreamControl crop accelerator and finally into the awaiting trailer. This system design results in superior performance, reliability and reduced fuel consumption.

Within the cutter head itself, the knife carriers are arranged in a chevron style and designed to allow plenty of space under each knife for the crop. This extra space allows for higher throughputs and smoother operation.

The six pre-compression rollers with an 820mm gap between the leading roller (which is equipped with a metal detector) and the rearmost roller not only enhance pre-compression but also protect the knives better against metal objects when working at higher intake speeds.

The VariStream has a spring-loaded floor under the cutting drum which allows large lumps of grass to pass through the chopping unit without blockages.

The Stream Control feature is a powerful crop accelerator which is linked to an adjustable flap that alters the space between the accelerator and the crop, which allows for precision filling even when the trailer is following from behind.

Cab

The compact range Big X cab is wider, quieter and brighter than previous models. The double floor keeps noise in the cab to a minimum, while the narrow posts and high side windows give the operator the best possible view of the spout even at its 6m full working height.

Sixteen H9 lights provide excellent illumination, with LEDs as an optional extra to further enhance visibility. All the controls are clutter-free and simple to identify, while the ergonomic joystick fits comfortably in your hand and allows fingertip control of all functions such as ground speed and direction as well as header and spout control.
