Cab and tranmission updates for John Deere's 6M series

John Deere has made some tweaks to its 6M series for 2027. Updates include a new e19 full powershift transmission, increased precision ag functions and a revised cab layout, allowing for a more consistent operating concept across tractor series.

New transmission

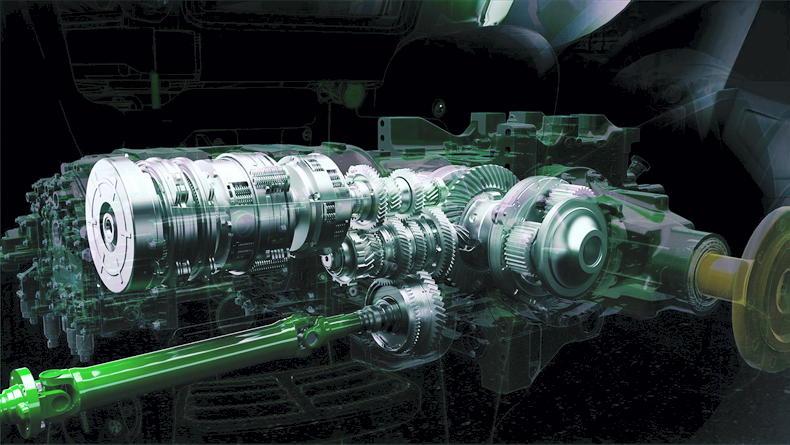

The new e19 transmission features 19 fully powershifted gears. The unit integrates a dual-clutch design and advanced proportional control valves to ensure smooth, uninterrupted gear changes and a more dynamic driving experience. The system allows clutch-free operation, similar to a stepless transmission.

It features an integrated management system that continuously adapts gear selection and shifting behaviour based on multiple tractor inputs, supporting faster gear changes, with no torque interruption under varying load conditions.

An inclination sensor adds terrain awareness to gear selection making gear changes faster and more predictive. ‘Skip shift’ jumps multiple gears for rapid speed changes, while ‘scroll shift’ keeps clutches partially engaged for even faster transitions, reduced heat, and less wear.

Compared to the CommandQuad Plus transmission, the e19 claims to deliver up to 5% productivity improvements, with up to 5% reduction in fuel consumption.

Operators can choose between pedal or joystick control and change seamlessly from one to the other.

In automatic mode, the system selects the appropriate gear and engine speed to balance performance, fuel efficiency, and operator comfort.

Cruise control functionality helps maintain a constant ground speed under changing load conditions. At transport speeds up to 50km/h, engine speed is reduced to 1,620 rpm.

The transmission can be operated via the traditional control lever, the Compact CommandArm, or the new CommandX Plus joystick, depending on operator preference. The e19 transmission will be available on most six-cylinder models up to the 6M 250.

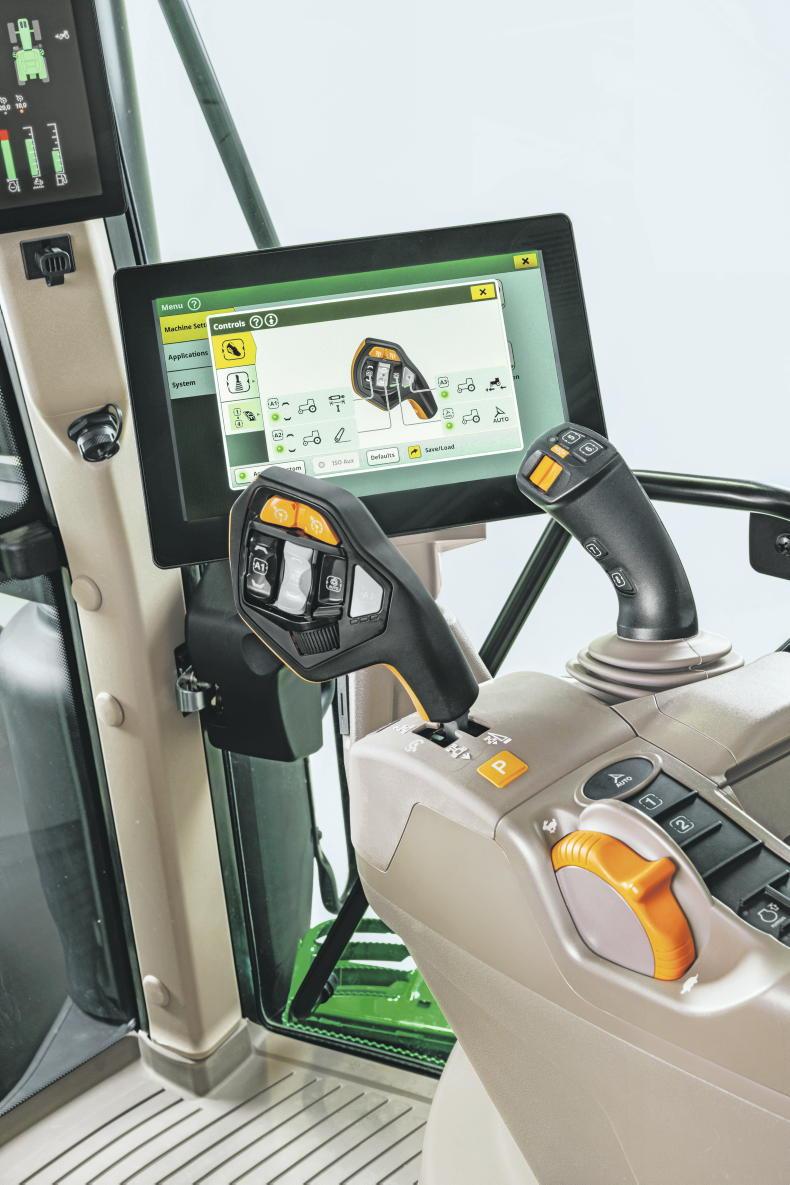

The cab has been revised to offer a clearer layout and a more flexible control configuration. Options range from a right-hand console with mechanical or electric spools to a compact CommandArm with G5 CommandCenter and CommandX Plus joystick.

The operating logic now follows the 6R, 7R and 8R series, supporting easier transfer between machines.

The optional CommandX Plus joystick is available on all e19 and AutoPowr transmissions.

Integrated into the Compact CommandArm, are six freely assignable buttons, two set speeds, and control of tractor and Isobus functions, familiar from the CommandPro joystick. Additionally, the Compact CommandArm offers two spool configurations with traditional electric spool switches or an electronic joystick.

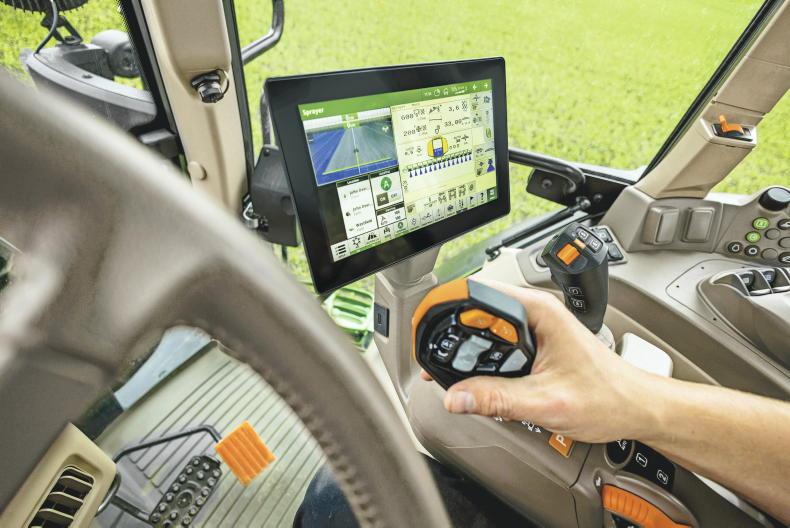

The corner post display remains the main control centre or where fitted, the optional 10.1-inch G5 CommandCenter display is the main interface for tractor and Precision Ag functions, supported by a corner post display.

A new Remote Display Control (RDC) enables remote adjustment of G5 displays, improving operator support and reducing setup time.

Increased automation

The updated 6M models support iTEC headland management, automating repeatable sequences such as PTO engagement, hitch movement, hydraulic functions, travel speed and gear selection based on distance.

Sequences can be saved per implement or operation and activated via dedicated buttons or reconfigurable controls, similar to the 6R tractor series.

With Work Planner, work plans created in the John Deere Operations Center, ie, guidance lines, application maps, etc, can all be transferred wirelessly to the tractor.

The 6M Series can be equipped with StarFire 7500 receivers, G5 displays and JDLink connectivity. SF-RTK enables positioning accuracy down to 2.5cm.

Standard G5 functionality includes Section Control and Variable Rate Control, with optional upgrades such as AutoTrac Turn Automation, AutoPath and Passive Implement Guidance.

Machine and field data are synchronised wirelessly with the John Deere Operations Center via DataSync.

InField Data Sharing links multiple John Deere machines working in the same field, on the same task, enabling operators to see real-time progress and coordinate as one.

A new high-bandwidth communication bus provides access to more than 2,000 machine data points, improving remote diagnostics and Expert Alerts based on live sensor and controller information. This allows service teams to pre-identify faults, shorten repair time and thus reduce unplanned downtime.
