Capacity of tanks: 211 cubic metres (46,430gal) total capacity; 176 cubic metres (38,700gal) net capacity.
Agitation points of shed are 8ft
deep.
Ventilation: Vented sheeting or spaced boarding for air inlets. In addition, a continuous opening and overhang is shown, although not mandatory unless internal shed width is over 15m. Air outlet is via a standard raised ridge cap as shown on drawings.
Costs: Average cost per ewe before grant, capital allowances and interest relief and after VAT is €460. Average cost per m2 of internal area, before grant, capital allowances and interest relief and after VAT is €260. Based on DAFM reference costs.
DAFM specifications: Refer to S146, S101, S102 and S123.
This content is available to digital subscribers and loyalty code users only. Sign in to your account, use the code or subscribe to get unlimited access.
The reader loyalty code gives you full access to the site from when you enter it until the following Wednesday at 9pm. Find your unique code on the back page of Irish Country Living every week.
CODE ACCEPTED
You have full access to the site until next Wednesday at 9pm.
CODE NOT VALID
Please try again or contact support.
Click on the images below to download full-size plans.
Description:

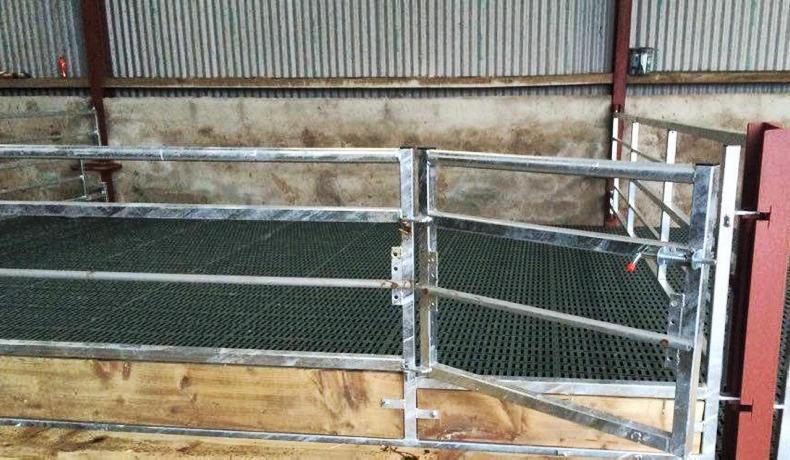

Eight slatted pens, central feed passage, roughage fed from central passage, meal fed from central passage and walk-through troughs.
Pen area: 4.4m (average length) x 4.7m = 20.68m2.
Lying space/ewe: 1.1m2/ewe (mature unshorn ewes).
Pen capacity: 18 or 19 ewes.
Shed capacity: 148 ewes (up to 20% more if winter shorn).
Roughage feed space: 4.4m feed space at 0.2m/ewe = 22 feed spaces/pen.
Capacity of tanks: 211 cubic metres (46,430gal) total capacity; 176 cubic metres (38,700gal) net capacity.
Agitation points of shed are 8ft
deep.
Ventilation: Vented sheeting or spaced boarding for air inlets. In addition, a continuous opening and overhang is shown, although not mandatory unless internal shed width is over 15m. Air outlet is via a standard raised ridge cap as shown on drawings.
Costs: Average cost per ewe before grant, capital allowances and interest relief and after VAT is €460. Average cost per m2 of internal area, before grant, capital allowances and interest relief and after VAT is €260. Based on DAFM reference costs.
DAFM specifications: Refer to S146, S101, S102 and S123.
